Electrical parameter:

Cable specification:0.15m㎡～0.2m㎡/26-24 AWG

Diameter range:Φ5.5mm～Φ7mm

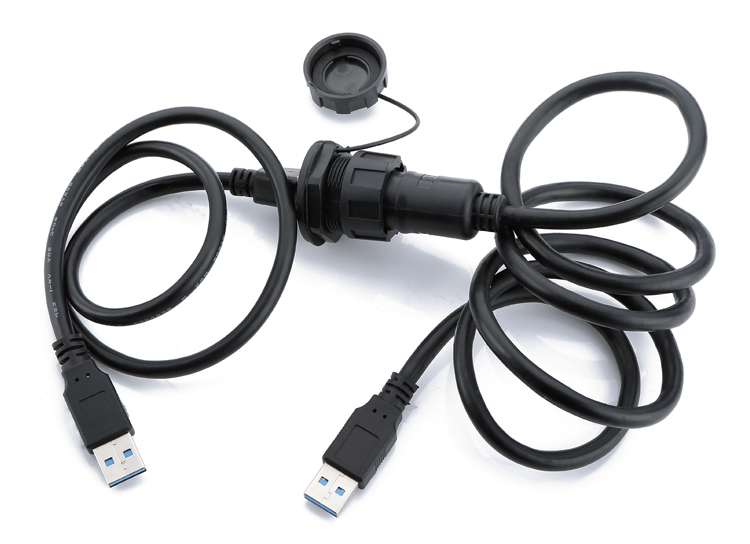

male plug+female socket with cable: 1m

Contact diameter × number:4/9

Rated Current (A):1.5

Contact resistance:<30mΩ

Withstanding Voltage (AC.V) 1 minute:1000V

Insulation resistance:＞500MΩ

Protection level:IP67

Durability:＞500

Working temperature:-40℃～80℃

Connecting mode:Quickly bayonet connect

Material:

Housing, the insulating parts:High-performance engineering plastics
Hardware:Zinc Alloy (pearl hard chrome)
Copper needles:Copper Shell
Waterproof circle:Silica gel
Flammability rating:UL94-V0

USB plugs and sockets are applicable to data transmission with quickly plug, fast transfer rate and strongly extensibility .They are widely used in computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

●Independent USB3.0 socket design, easy to install and operate
●Achieve double-headed male to female adapter, snap locking, ensure safe and stable
●Cable can be customized
●Compatible with USB2.0, protection level IP67
●Sheath of cable protect cable outlet well
●Solid connections system can provide the solutions for data transmission in harsh environments

DIMENSION FIGURE:

CONNECTION SCHEMES:
