Electrical parameter:

Cable specification:0.15m㎡～0.2m㎡/26-24 AWG

Diameter range:Φ8mm～Φ12mm

Contact diameter × number:8 pin

Rated Current (A):1.5

Insulation resistance:＞500MΩ

Protection level:IP65/68

Durability:＞500

Working temperature:-40℃～80℃

Connecting mode:1/4 bayonet connect

Material:

Housing, the insulating parts:PA66
Copper needles:Copper Shell
Waterproof circle:Silica gel
Flammability rating:UL94-V0

RJ45 can provide the solutions for signal transmission in harsh environments.Specially these connectors can apply for industrial ethernet in audio, business,amusement, live stage action,DMX lighting, industrial and outdoor in network environments.CNLINKO YT RJ45 series can provide cable jacket,assembly female plug, straight plug,cable coupler ,protective style, it is the strongest protection for installation of the box with the protection level of IP68.

●Compliance with D level or CAT 3e standard of EIA568B and ISO/IEC11801,RJ45 connec torscompatible CAT5e, data transfer rate reach 10GBIT/S
●Multi-style connecting modes: 1/4 bayonet connect (YT01), quickly plug/unplug(YT09/04)
●Applicable for harsh environments
●Cable jacket with solid diecasted shell and unique dual-clip-clip wire saddle
●Sheath of cable applicable for common RJ45 plugs
●Waterproof and non-waterproof design, protection level IP65 if waterproof and dustproof
●Electroplated shell against wind and rain
●Shielding system with high frequency noise immunity and electromagnetic interference protection

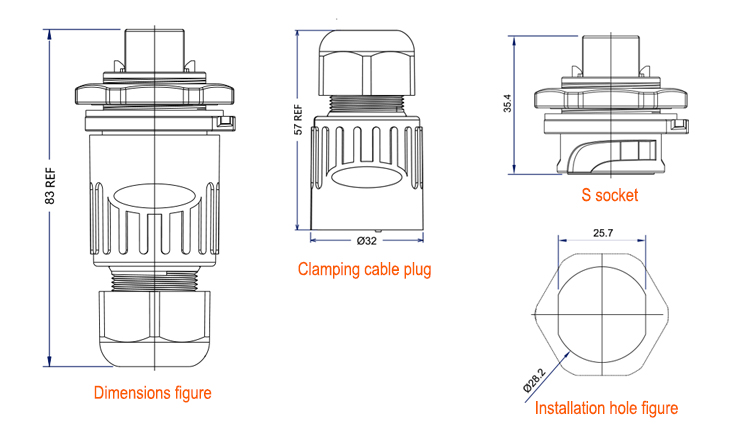

DIMENSION FIGURE:

PHYSICAL DISPLAY:

CONNECTION SCHEMES:
